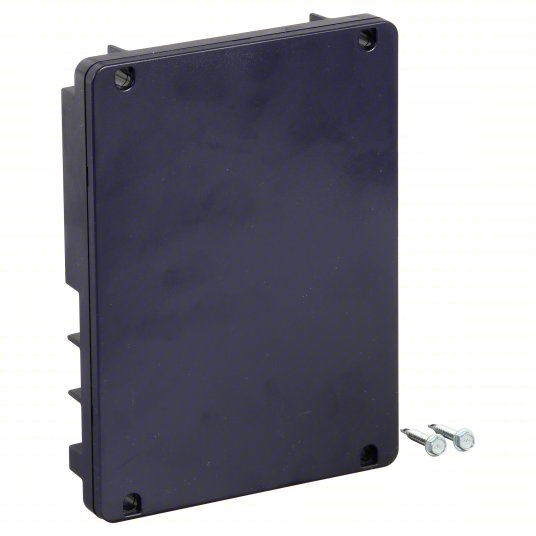

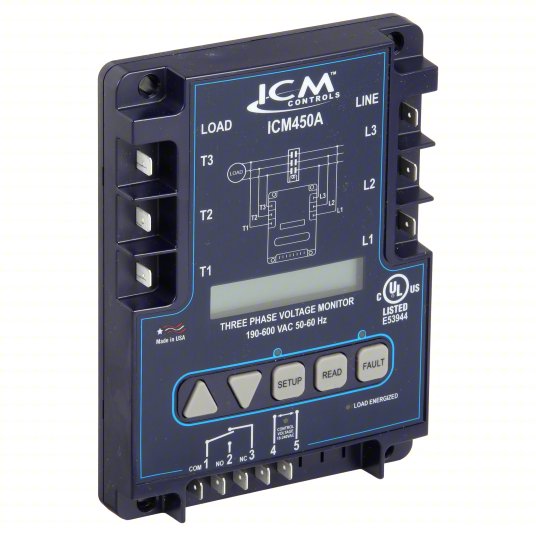

Line Voltage Monitor: Three Phase, Monitors Line Volt, SPDT - NO/NC, LCD, 18V AC / 240V AC
Line Voltage Monitor: Three Phase, Monitors Line Volt, SPDT - NO/NC, LCD, 18V AC / 240V AC
Regular price
$209.74
Regular price
Sale price
$209.74
Unit price
/
per
Couldn't load pickup availability
These monitors connect the protected component or system with the power grid directly or through a high-power relay. They monitor the grid power for fluctuations or inconsistencies that could cause damage and disconnect the equipment before it can occur.
PhaseThree
Minimum Voltage Measurement190V AC
Maximum Voltage Measurement600V AC
Monitored MeasurementsLine Voltage
Display TypeLCD
Minimum Contol Voltage18V AC
Maximum Control Voltage240V AC
Frequency50/60 Hz
Percentage Volts Unbalance2 to 20%, Adj.
Contact FormSPDT
Normally Open Output Current10 A
Normally Closed Output Current6 A
Time Delay0 to 10 min, Adj.
Delay TypeAdjustable
Reset TypeAutomatic Reset; Manual Reset
ProgrammableProgrammable
Operating Temperature - Minimum-40 °F
Operating Temperature - Maximum149 °F
True RMSTrue-RMS Measuring
Memory StorageProgrammable 25-Fault
Communication ProtocolModbus RS485
Mounting TypeSurface
StandardscULus
Overall Height1-1/16 in
Overall Length6-1/2 in
Overall Width4-3/4 in
Manufacturer Part NumberICM450A
BrandICM
UNSPSC39121543
Country of OriginUSA (subject to change)
